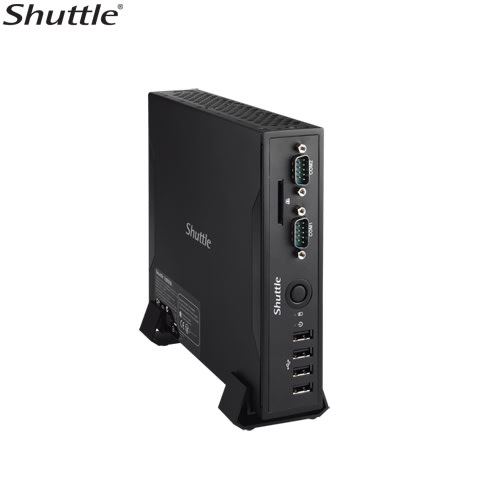

Shuttle DS437 - full HD - dual NIC

Quantity in Stock: (Out of Stock)

Please allow 3-4 business days for assembly and testing

Product Code: DS437

Spec Sheet:: Download
Customize:: Want different options? More customization? Just ask!

Choose your options:

Hard Drive(required):

Optical Drive(required):

Operating System(required):

Keyboard & Mouse(required):

Warranty(required):

Qty:

DISCONTINUED

Focused on the professional Full HD digital signage market, Shuttle introduces the DS437, equipped with latest high-performance Intel® Celeron 1037U dual-core processor, built-in Intel® HD Graphics, is capable of playing 1080P Full HD video content; The DS437 is easily connected to peripherals with built-in RS232, RS232/RS422/ RS485, USB2.0&3.0, dual Gigabit-LAN and more. The compact device is designed for convenient configuration-- Simply removes only two screws to open back cover to install memory module, hard disk (SSD) and other hardware components. The system integrates exclusive heat-pipe cooling technology, using a mere 65W adapter for 24/7 nonstop operation. The fanless design ensures silent operation. It is an ideal platform for Digital Signage, POS, KIOSK, Thin Client, Queuing machine and Office PC applications.

PROCESSOR	Intel Celeron 1037U dual core CPU
CHIPSET	Intel NM70 Express chipset
MEMORY	2 x 204 pin DDR3 SODIMM slots,8GB per DIMM (Max 16GB) Dual Channel DDR3 1333 Mhz
VGA	DVI-I + HDMI dual display
AUDIO	Realtek ALC662 channel High Definition Audio
ETHERNET	Realtek 8111G X2 100Mb/s and 1Gb/s operation Support Wake-On-LAN function Built in 802.11b/g/n WLAN module
STORAGE INTERFACE	6.0Gb/s bandwidth SATA3
ONBOARD CONNECTORS	(1) 2.5 inch SATA connector (1) SATA power connector (1) LVDS connector (1) LPC header (1) 4pin fan connector (1) 3pin fan connector
FRONT PANEL	(1) Power on button (1) Power LED (1) HDD LED (4) USB 2.0 ports (1) RS232/RS422/RS485 (1) RS232 (1) SD Card reader
BACK PANEL	(2) RJ45 Gigabit LAN port (1) DVI-I port (1) HDMI port (2) USB 3.0 ports (1) MIC in (1) Line out (1) External power on header (1) Clear CMOS (1) DC in (1) Kensington lock (2) Wireless Antenna fixture
DRIVE BAYS	(1) 2.5" HDD / SSD bay
DIMENSIONS	200(L) x 165(W) x 39.5(H) mm
POWER	65W Power Adapter Input:100- 240V AC Output: 19V 4.47A DC
EXPANSION SLOT	(1) Full size Mini-PCIE socket (m-SATA support) (1) Half size Mini-PCIE socket for WLAN module
OS SUPPORT	Windows XP Windows 7 Windows 8 Linux

Product #	Dimensions	CPU Choices	Max RAM	Cooling	Features
XS36VL	7.87" x 6.29" x 1.41"	Cedar Trail Atom D2550	4 GB	Fanless	1 NIC 5 USB ports 2 serial ports 1 DVI port 1 VGA port 1 HDMI port
XS35V3L	9.92" x 6.37" x 1.51"	Cedar Trail Atom D2550	4 GB	Fanless	1 NIC 5 USB ports 1 VGA port 1 HDMI port Optical dive bay
XS35GS	9.92" x 6.37" x 1.51"	Cedar Trail Atom D2550	4 GB	Fanless	1 NIC 5 USB ports 1 HDMI port 1 DVI port Optical drive bay AMD Radeon HD graphics
DS437	7.87" x 6.49" x 1.55"	Celeron 1037U	16 GB	Fan	2 NICs 6 USB ports 2 serial ports 1 DVI port 1 HDMI port
DS61	7.5" x 6.5" x 1.7"	Celeron G1610 Pentium G2020 i3/i5/i7 (Sandy Bridge and Ivy Bridge)	16 GB	Fan	2 NICs 6 USB ports 2 serial ports 1 HDMI port 1 DVI port
XH61V	9.44" x 7.87" x 2.83"	Celeron G1610 Pentium G2020 i3/i5/i7 (Sandy Bridge and Ivy Bridge)	16 GB	Fan	2 NICs 6 USB ports 2 serial ports 1 DVI port 1 HDMI port Optical drive bay
DS81	7.5" x 6.6" x 1.7"	Celeron G1820 Pentium G3220 i3/i5 (Haswell)	16 GB	Fan	2 NICs 8 USB ports 1 HDMI port 2 DisplayPorts 4K display
