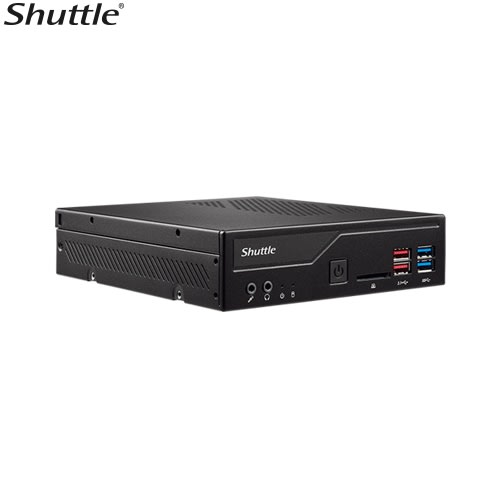

Shuttle DH370 Mini PC - 8th Gen | triple 4K display

Shuttle DH370 Mini PC - 8th Gen | triple 4K display




Base Price: $465.00


Spec Sheet: Download

Customize: Want different options? More customization? Just ask!

Lead time:: Please allow 3-4 business days for assembly and testing
Product Code: DH370


Processor*:


Memory*:


Hard Drive*:


2nd HDD*:


Optical Drive*:


Wireless*:


Operating System*:


Keyboard & Mouse*:


Warranty*:


Qty:
Description Technical Specs

Engineered for the next level of digital signage and multi-displays, the DH370 combines higher processing performance with excellent scalability. Powered by 8th Generation Intel processors and integrated with Intel UHD graphics for advanced computing, the DH370 supports up to three 4K displays via independent HDMI 2.0a and 2 x DisplayPort outputs. It is also equipped with rich I/Os including 2 x Giga LAN, 4 x USB 3.1 Gen 2, 4 x USB 3.1 Gen 1, 2 x M.2 and 2 x serial ports to connect to customer-desired peripherals. Furthermore, its slim chassis makes it fit perfectly in limited space, featuring a rugged design allows for 24/7 operation even in 50C environments. With the DH370 available, you can meet the challenge of deploying scalable signage for a wide range of application fields.
Features
  • Intel® 8th Generation Processors

    The DH370 is designed with Intel® H370 chipset and available with the 8th Gen Intel® Core™, Pentium® and Celeron® processors in the LGA1151v2 package. With new processors up to 6 cores, the platform supports up to 32GB (16GB x 2) of DDR4-2666 memory, integrated UHD graphics and PCI-E controllers to support onboard graphics output for outstanding graphics performance.

    Next-Gen Intel® CNVi WiFi Support

    With on-board M.2 2230 expansion slot, the DH370 is Intel® CNVi function ready which supports installation of CNVi wireless module for an efficient and optimized gigabit wireless networking.

    Triple Display Productivity

    With one HDMI and two DisplayPort outputs built-in, the DH370 supports three independent displays, providing productivity benefits and dynamic visualization for multitasking and digital signage applications.

    High Storage Capacity with M.2

    With native M.2 2280 Type M and one M.2 2230 Type E slot, the DH370 offers considerably faster storage performance and expansion capacity for M.2 SSD and Wi-Fi modules.
    *M.2 key M supports both SATA and PCIe storage interfaces

    Exclusive Cooling Technology

    The DH370 features Shuttle’s exclusive heat-pipe cooling system with smart fan design. The clever ventilation design allows for constant air circulation between the inside and outside of the machine resulting in high stability and low noise for long-term operation.

    VESA Mount-Ready

    The DH370 is VESA mount compliant and allows for versatile integration into hardware systems. This space-saving capability is well-suited for digital signage and kiosk applications with limited space.

    Support Power on by RTC

    Save energy costs as well as the cost of on-site service with Power-On by RTC function. Set automatic ‘Power On’ and ‘Power Off’ times by RTC via BIOS. Power on by RTC can also be turned on and off with the Windows task scheduler.

    Intel® Optane™ Memory Ready

    The DH370 boasts support for Intel® Optane™ memory technology, which makes your overall system performance up to 28% faster to deliver amazing storage speed.

    4K UHD Experience with HDMI 2.0a

    The DH370 features one HDMI 2.0a output to support 4K@60Hz resolution (4096 x 2160) at a maximum of 60FPS as well as transmission of high dynamic range (HDR) video, which allows viewers to enjoy the vivid streaming, higher contrast ratio, and more accurate color from HDR-compatible displays and TVs.

    Speedy Transmission with USB 3.1 Gen 2

    The DH370 provides four sets of USB 3.1 Gen 2 and USB 3.1 Gen 1 for high-speed data transmission. With USB 3.1 Gen 2, users can take advantage of a maximum data rate of 10 Gbps, which achieves an almost a 2x improvement over USB 3.1 Gen 1 and a 20x improvement over USB 2.0.

    High-Speed Dual Gigabit LAN

    The DH370 has built-in dual Intel® i211 Gigabit LAN and supports Wake On LAN and Teaming Mode function to provide high-speed data transfer capability and thus a better business networking integration.

    Operable in 0-50⁰C

    The DH370 uses industrial capacitors in order to meet the environmental operation demands of commercial applications.
    *With use of SSD and Wide Range Temp. SO-DIMM

    24/7 Nonstop Operation

    Officially approved for 24/7 permanent operation. Thanks to Shuttle’s low power consumption design and stable operation, the DH370 runs highly reliable and meets the long-run demands of computing work.

    The Watchdog

    Watchdog Timer provides excellent security protection for systems that need to operate continuously for a long period of time. Use Shuttle’s Watch Dog utility to maintain normal operation and stability of the system at all times.
