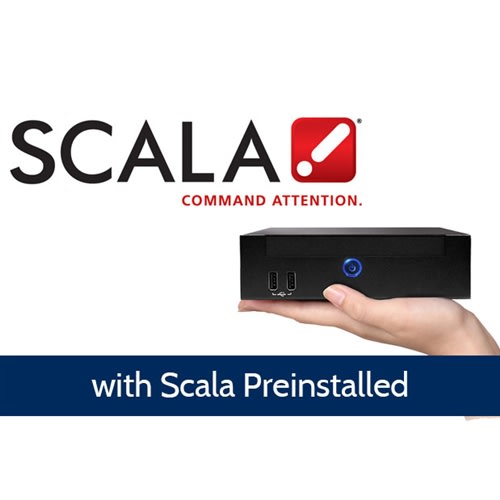

AOpen Digital Engine DE5100I with Scala Included
Base Price:
$
698.00
Customized Price:
$698.00
Customize:
Want different options? More customization? Just ask!
Lead time::
Please allow 3-4 business days for assembly and testing
Product Code:
SCA-P1
Processor
*
:
Intel Core i5 Mobile i5-3210M - 2.5 GHz, 3MB (IvyBridge) [Add $75.00]
Memory
*
:
4GB DDR3L-1600MHz SODIMM Notebook Memory
8GB DDR3L-1600MHz SODIMM Notebook Memory [Add $30.00]
16GB DDR3L-1600MHz SODIMM Notebook Memory (8GB x 2) [Add $100.00]
Hard Drive
*
:
120GB 2.5" SATA III MLC Internal Solid state disk (SSD)
250GB 2.5" SATA III MLC Internal Solid state disk (SSD) [Add $25.00]
500GB 2.5" SATA III MLC Internal Solid state disk (SSD) [Add $50.00]
1TB 2.5" SATA III MLC Internal Solid state disk (SSD) [Add $100.00]
2TB 2.5" SATA III MLC Internal Solid state disk (SSD) [Add $200.00]
-------------------------------------
Optical Drive
*
:
(none)
8X SATA DVD+/- RW Internal Slim Drive [Add $25.00]
6X SATA Blu-ray Combo Internal Slim Drive [Add $75.00]
Wireless
*
:
(none)
Intel Dual Band Wireless-AC 7260 + Bluetooth 4.0 (dual antenna) [Add $45.00]
Operating System
*
:
Microsoft Windows Embedded 7 with Scala Image
Keyboard & Mouse
*
:
(none)
Logitech USB Keyboard & Mouse [Add $20.00]
Logitech Wireless Keyboard & Mouse [Add $40.00]
Mini USB Keyboard & Mini USB Optical Mouse [Add $20.00]
Mini USB RF Wireless Keyboard and Mouse [Add $40.00]
Accessories
*
:
Digital Engine VESA Mount (Mount PC to back of LCD) [Add $39.00]
Warranty
*
:
Included - 1 Year Standard Limited Warranty (1yr parts/labor)
2 Year Total Parts & Labor Extended Warranty [Add $29.00]
3 Year Total Parts & Labor Extended Warranty [Add $49.00]
Qty:
Description
Technical Specs
AOpen DE5100I equips dual channel SO-DIMM DDRIII 1066MHz memory. The Intel HM65 chipset and GMA 3000 enable it to deliver smooth 1080p video playback and outstanding real time 3D rendering for fulfilling the needs of various applications. For the audio, it can output HD audio to create immersive hearing experience via its Realtek HD AUDIO ALC662 chipset. It also has gigabit LAN and one COM (RS232) ports for greater connection capability.
Included in this Digital Signage package is Scala5, which is marketed as a Digital signage software suite and is used by companies in retail, airports, healthcare, education, manufacturing and more, to create, manage and distribute electronic messages for advertising or information, which can also be interactive, using various forms of visual display media.
Model
DE5100I
Dimension:
inch :
6.54(W) x 1.89(H) x 6.18(D)inch
Volume:
1.25L
Single Pack Weight:
N.W. :
1.03 kgs / 2.27 lbs
G.W. :
1.97 kgs / 4.34 lbs
CPU:
Socket :
Socket G2/rPGA988B
Type :
Support Intel 2nd generation Core i3, i5, i7 mobile processor TDP≦35W
Chipset:
PCH: Intel HM65 chipset
Memory:
Dual Channel
Type :
DDRIII SO-DIMM x 2
Speed Grade :
1333/1066Mbps
Max memory :
16G (based on OS support)
Graphics:
Chip :
Intel HD Graphics 3000
Expansion Slot:
mini Card Slot :
x 2 (Full size x1, half size x1)
Audio:
Type :
Realtek HD Audio Codec ALC662
Channel :
Stereo
LAN:
Intel Gigabit Ethernet WG82579LM
10/100/1000Mbps
Storage Bay:
Slot-in Slim ODD Bay :
x 1
2.5" SATA II HDD Bay :
x 1
CF card socket :
N/A
Power Button & indicator:
Power Button :
x 1 @Front panel
HDD indicator :
Blue x 1 @Front panel
Power indicator :
Blue x 1 @Front panel
Front Panel IO:
USB 2.0 Port :
x 2
USB3.0 Port :
N/A
Rear Panel IO:
DC Jack :
x 1
DVI Port :
x 1
VGA Port :
x 1 (via DVI to VGA converter)
HDMI Port :
x 1 (via DVI to HDMI cable)
Display Port :
x 1
USB 2.0 Port :
N/A
USB 3.0 Port :
X 2
RJ-45 LAN Jack :
x 1
Legacy RS232 Serial Port (COM Port) :
x 1
Audio Set Line-In :
N/A
Audio Set Line-Out :
x 1
Audio Set Mic-In :
x 1
Upgrade for Antenna Port :
x 2
Kensington Lock Hole :
x 1
CPU Thermal Module:
AOpen Thermal Module
WatchDog Timer:
1 ~ 255 sec/min
Adapter:
65W (19V, 4.74A) AC Adapter
Input Voltage:
AC 100 ~ 240V
Environment:
MTBF :
40,000 hrs
Operating Temperature :
0 ~ 50°C (32 ~ 122°F)
Storage Temperature :
-30 ~ 60ºC (-22 ~ 140ºF)
Relative Humidity :
95% RH (50°C non-Condensing)
Support OS:
Windows 7 Pro/Ultimate :
V
Windows XP :
V
Windows XP Embedded :
V
Windows Embeddeb Standard 2009 (WES2009) :
V
Windows Embedded Standard 7 (WES7E) :
V
Windows Embedded Standard 7 (WES7P) :
V
