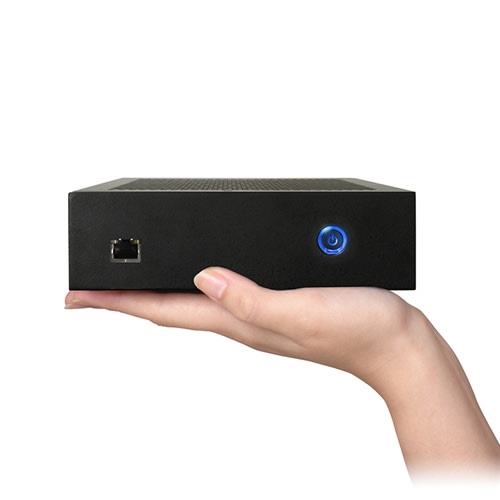

AOPEN Digital Engine DE3105 - Fanless, Atom, Dual NIC, Dual RS232
Base Price:
$
315.00
Leasing:
Leasing options are available. Learn more
here
.
Lead time::
Please allow 2-3 business days for assembly and testing
Product Code:
DE3105
Processor
*
:
Intel Atom D2550 - 1.86 GHz, 1MB
Memory
*
:
2GB DDR3L-1600MHz SODIMM Notebook Memory
4GB DDR3L-1600MHz SODIMM Notebook Memory [Add $25.00]
Hard Drive
*
:
120GB 2.5" SATA III MLC Internal Solid state disk (SSD)
250GB 2.5" SATA III MLC Internal Solid state disk (SSD) [Add $50.00]
500GB 2.5" SATA III MLC Internal Solid state disk (SSD) [Add $100.00]
1TB 2.5" SATA III MLC Internal Solid state disk (SSD) [Add $250.00]
-------------------------------------
500GB 2.5" 5400rpm SATA2 8MB Notebook Hard Drive
500GB 2.5" 7200rpm SATA2 16MB Notebook Hard Drive [Add $10.00]
750GB 2.5" 7200rpm SATA2 16MB Notebook Hard Drive [Add $20.00]
1TB 2.5" 5400rpm SATA2 8MB Notebook Hard Drive [Add $15.00]
Optical Drive
*
:
(none)
USB 2.0 Slim External 8X DVD Drive, USB-Powered [Add $39.00]
Wireless
*
:
(none)
Intel Dual Band Wireless-AC 7260 + Bluetooth 4.0 (dual antenna) [Add $45.00]
Operating System
*
:
(none)
-------------------------------------
Microsoft Windows 10 Home 32-bit [Add $99.00]
Microsoft Windows 10 Home 64-bit [Add $99.00]
Microsoft Windows 10 Professional 32-bit [Add $139.00]
Microsoft Windows 10 Professional 64-bit [Add $139.00]
-------------------------------------
Windows Embedded Standard 7 64-bit (WES7) [Add $110.00]
Windows 10 IOT Enterprise 2015 [Add $110.00]
Keyboard & Mouse
*
:
(none)
Logitech USB Keyboard & Mouse [Add $20.00]
Logitech Wireless Keyboard & Mouse [Add $40.00]
Mini USB Keyboard & Mini USB Optical Mouse [Add $20.00]
Mini USB RF Wireless Keyboard and Mouse [Add $40.00]
Accessories
*
:
(none)
Digital Engine VESA Mount (Mount PC to back of LCD) [Add $39.00]
Warranty
*
:
Included - 1 Year Standard Limited Warranty (1yr parts/labor)
2 Year Total Parts & Labor Extended Warranty [Add $29.00]
3 Year Total Parts & Labor Extended Warranty [Add $49.00]
OUT OF STOCK
Description
Technical Specs
Comparison Page
The AOPEN Digital Engine DE3105 is a versatile digital engine used in different digital applications including digital signage, KIOSK, and digital advertising displays. Ruggedized casing and fanless design makes the DE3100 the perfect digital engine for noise sensitive environments such as classrooms or hospitals and has no moving parts - perfect for industrial deployments. The DE3100 comes equipped with HDMI and VGA ports for dual screen support, gigabit LAN, and 3 USB 2.0 ports in rear panel.
Specification
Model
DE3105
Dimension:
inch :
6.54(W) x 1.89(H) x 6.18(D)inch
Volume:
1.25L
Single Pack Weight:
N.W. :
1.0kgs / 2.2 lbs
G.W. :
1.89kgs / 4.16 lbs
CPU:
Socket :
BGA
Type :
Intel ATOM Cedar Trail-D D2550 1.86GHz CPU
Chipset:
PCH: Intel NM10 Chipset
Memory:
Dual Channel :
Single Channel
Type :
DDRIII SO-DIMM x 2
Speed Grade :
1333/1066Mbps
Max memory :
4G
Graphics:
Chip :
Intel GMA 3650
Expansion Slot:
mini Card Slot :
x 2 (Full size x1, half size x1)
Audio:
Type :
Realtek HD Audio Codec ALC662
Channel :
Stereo / 5.1 CH with HDMI
LAN:
Intel Gigabit Ethernet 82583V
10/100/1000Mbps
Storage Bay:
Slot-in Slim ODD Bay :
N/A
2.5" SATA II HDD Bay :
x 1
CF card socket :
N/A
Power Button & indicator:
Power Button :
x 1 @Front panel
HDD indicator :
Blue x 1 @Front panel
Power indicator :
Blue x 1 @Front panel
Front Panel IO:
USB 2.0 Port :
N/A
USB3.0 Port :
N/A
Rear Panel IO:
DC Jack :
x 1
DVI Port :
N/A
VGA Port :
x 1
HDMI Port :
x 1
Display Port :
N/A
USB 2.0 Port :
x 3
USB 3.0 Port :
N/A
RJ-45 LAN Jack :
x 2
Legacy RS232 Serial Port (COM Port) :
x 2
Audio Set Line-In :
N/A
Audio Set Line-Out :
x 1
Audio Set Mic-In :
x 1
Upgrade for Antenna Port :
x 2
Kensington Lock Hole :
x 1
CPU Thermal Module:
AOpen FANLESS Thermal Module
WatchDog Timer:
1 ~ 255 sec/min
Adapter:
65W (19V, 3.42A) AC Adapter
Input Voltage:
AC 100 ~ 240V
Environment:
MTBF :
40,000 hrs
Operating Temperature :
0 ~ 40oC (32 ~ 104oF)
Storage Temperature :
-20 ~ 60oC (-4 ~ 140oF)
Relative Humidity :
90% RH (40°C non-condensing)
Support OS:
Windows 7 Pro/Ultimate :
V (only support 32bit)
Windows Embedded Standard 7 (WES7E) :
V (only support 32bit)
Windows Embedded Standard 7 (WES7P) :
V (only support 32bit)
Digital Engine
Product #
Dimensions
CPU Choices
Max RAM
Cooling
Features
DE3105
6.54" x 1.89" x 6.18"
Cedar Trail Atom
D2550
(1.86 GHz, 1 MB)
4 GB
Fanless
2 NICs
3 USB ports
2 serial ports
1 VGA port
1 HDMI port
DE7000
6.54" x 1.89" x 6.46"
Core 2 Duo Mobile
T7300
P8600
T9400
4 GB
Fan
1 NIC
6 USB ports
1 serial port
1 VGA port
1 HDMI port
DE5100I
6.54" x 1.89" x 6.18"
Pentium Mobile B950
i3/i5/i7 Moblie
(Sandy Bridge and Ivy Bridge)
16 GB
Fan
1 NIC
4 USB ports
1 serial port
1 DVI port
1 DisplayPort
DE35HD
6.54" x 1.89" x 6.18"
AMD G-Series
T56N Embedded
(1.6 GHz)
16 GB
Fan
6 USB ports
1 serial port
1 NIC
1 DVI port
1 DisplayPort
DE67HAI
6.54" x 1.89" x 6.18"
Pentium Mobile B950
i3/i5/i7 Mobile
(Sandy Bridge and Ivy Bridge)
16 GB
Fan
4 USB ports
2 HDMI ports
1 DisplayPort
1 NIC
1 serial port
2 eSATA ports
DE7200
6.54" x 1.89" x 6.18"
i3/i5/i7 Mobile
(Haswell)
16 GB
Fan
4 USB ports
1 DVI port
1 DisplayPort
1 NIC
1 serial port
DE6100
6.54" x 1.89" x 6.18"
AMD R-Series
R-464L Embedded
(2.3 GHz, 4 MB)
16 GB
Fan
6 USB ports
2 HDMI ports
1 DisplayPort
1 NIC
1 serial port
DEX7150
7.87" x 2.56" x 7.87"
Pentium Mobile B950
i3/i5/i7 Mobile
(Sandy Bridge and Ivy Bridge)
16 GB
Fanless
6 USB ports
2 DisplayPorts
1 DVI port
2 NICs
1 serial port
